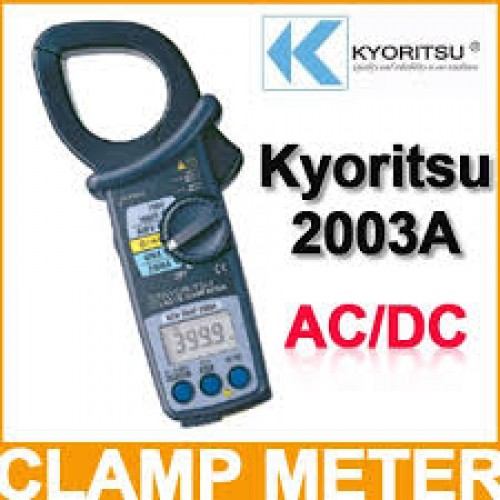

2003A digital clamp meter

KM 2003A AC/DC DIGITAL CLAMP METER

Qty

•	Equipped to measure both AC and DC current with transformer jaws of large diameter.
•	Can measure AC and DC currents up to 2000A.
•	Output terminal for connection to recorders.

AC A

400A/2000A (0~1000A)
|±1.5%rdg±2dgt [50/60Hz]
|±3%rdg±4dgt [40~500Hz]
|±5%rdg±4dgt [500Hz~1kHz]
2000A (1001~2000A)
|±3%rdg±2dgt [50/60Hz]

AC V

400/750V
|±1.5%rdg±2dgt [50/60Hz]
|±1.5%rdg±4dgt [40Hz~1kHz]

DC A

400/2000A ±1.5%rdg±2dgt

DC V

400/1000V ±1%rdg±2dgt

400/4000Ω|±1.5%rdg±2dgt

Continuity buzzer

buzzer sounds below 50±35Ω

Output

Recorder :	DC400mV against AC/DC400A
	DC200mV against AC/DC2000A

Conductor Size

Ø55mm max.

Safety Standard

IEC 61010-1 CAT.IV 600V CAT.III 1000V
IEC 61010-031
IEC 61010-2-032

Frequency Response

40Hz~1kHz

Withstand Voltage

6880V AC for 5 seconds

Power Source

R6P (AA) (1.5V) ×2

Dimensions

250(L) × 105(W) × 49(D)mm

Weight

530g approx.

Accessories

7107A (Test leads)
8201 (Output Plug)
9094 (Carrying Case)
R6P (AA) × 2
Instruction Manual

Optional

8008 (Multi-Tran) (AC only)
7256 (Output cord)
