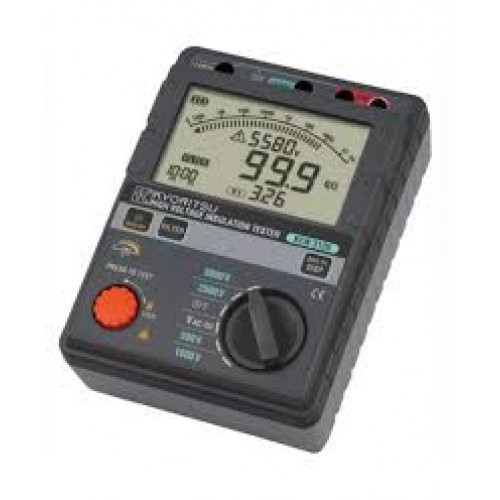

KM 3126 High Voltage Insulation Tester

  • KM 3126 High Voltage Insulation Tester

KM 3126 High Voltage Insulation Tester

    • S$2,275.92

      S$1,294.92

       (Ex Tax: S$1,188.00)
  • Brand: KYORITSU
  • Availability: In Stock

Selection Guide Product Catalogue Instruction Manual


• Short-Circuit Current up to 5mA
• Wide range measurements from 500V to 5000V and up to 1TΩ
• Large digital display with Bar Graph indication and white LED back light
• Polarization Index measurement (PI), Dielectric Absorption Ratio (DAR)
• Filter function reduces noise interference for obtaining stable measurement
• Indication of Output voltage and Discharge voltage
• Auto-discharge function and Output voltage warning function
• Auto power off and Battery Indicator
• Safety standard IEC 61010-1 CAT.III 600V



Backlight 3126 500V/1000V/2500V/5000V    AUTO DISCHARGECE

Range Insulation resistance Voltage
measurement
500V 1000V 2500V 5000V V AC/DC
Measuring range 0.0~99.9MΩ
100~999MΩ		 0.0~99.9MΩ
100~999MΩ
1.00~1.99GΩ		 0.0~99.9MΩ
100~999MΩ
1.00~9.99GΩ
10.0~99.9GΩ		 0.0~99.9MΩ
100~999MΩ
1.00~9.99GΩ
10.0~99.9GΩ
100~1000GΩ
(1TΩ)		 30~600V
AC/DC
(50/60Hz)
Accuracy |±5%rdg |±3dgt |±5%rdg |±3dgt |±5%rdg |±3dgt |±5%rdg |±3dgt
|±20%(100GΩ or more)		 |±2%rdg |±3dgt
Short Circuit Current Max. 5mA -------
Rated test Current 1mA to 1.2mA
at 0.5MΩ load		 1mA to 1.2mA
at 1MΩ load		 1mA to 1.2mA
at 2.5MΩ load		 1mA to 1.2mA
at 5MΩ load		 -------
Open circuit voltage 500VDC
+30%
-0%
1000VDC
+20%
-0%
2500VDC
+20%
-0%
5000VDC
+20%
-0%
-------
Maximum display 999 Counts (1000 counts only at 1000GΩ) 630 Counts
Current consumption 1000mA approx. (During measurement) 110mA approx.
Withstand Voltage 5320V AC for 5 seconds
Applicable standard IEC 61010-1 CAT.III 600V Pollution degree 2
IEC 61010-031, IEC 61326
Power source DC12V : LR14×8 pcs.
Dimensions 205(L) × 152(W) × 94(D)mm
Weight 1.8kg approx.
Accessories 7165A (Line probe), 7224A (Earth cord), 7225A (Guard cord)
8019 (Hook type prod), 8254 (Extension prod), 9159 (Hard case)
LR14 (Alkaline battery size C) × 8,
Instruction manual, Calibration certificate
Optional 7168A (Line probe with alligator clip)
7253 (Longer Line probe with alligator clip)
8302 (Adaptor for recorder)
