KM 3125A high voltage insulation tester NEW!!

  • KM 3125A high voltage insulation tester NEW!!

KM 3125A high voltage insulation tester NEW!!

    • S$1,308.00

      S$1,108.53

       (Ex Tax: S$1,017.00)
  • Brand: KYORITSU
  • Availability: In Stock


High Voltage Insulation Tester



KEW 3025A/3125A

Selection Guide Product Catalogue Instruction Manual

• Insulation Resistance up to 1TΩ (KEW 3125A)
• Short-Circuit Current up to 1.5mA
• Wide Test Voltage from 250V to 5000V (KEW 3125A)
• Diagnosis Function of PI and DAR
• Newly-designed alligator clip
• It comes with a tough hard case
• Filter function reduces noise interference for obtaining stable measurement
• Large display with Bar Graph indication and backlight
• Live voltage warning
• Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V

CAT IV 300V CAT III 600V DC AC V Backlight AUTO POWER OFF
3025A 250V/500V/1000V/2500V 3125A 250V/500V/1000V/2500V/5000V

3125A
CEAUTO DISCHARGE

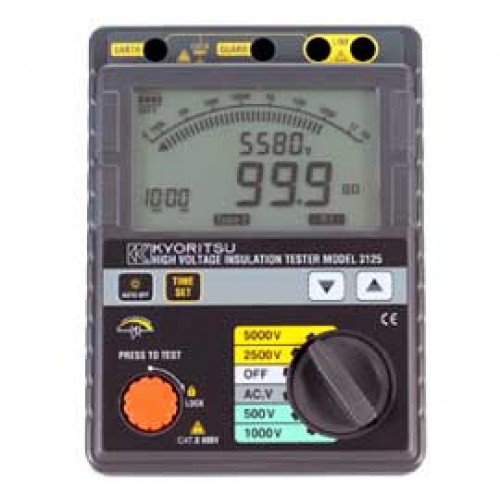

(Photo: 3125A)

© 2025 Federal Components. All Rights Reserved.

  • TEL: 6293 8983
  • FAX: 6291 3947
Insulation resistance
Rated voltage 250V 500V 1000V 2500V 5000V (*)
Accuracy
0.0 - 100.0MΩ
0.0 - 99.9MΩ
80 - 1000MΩ
0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 2.00GΩ
0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 9.99GΩ
8.0 - 100.0GΩ
0.0 - 99.9MΩ
80 - 999MΩ
0.80 - 9.99GΩ
8.0 - 99.9GΩ
80 - 1000GΩ
±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt

±20%rdg (100GΩ or more)
Short circuit current 1.5mA
Output voltage Accuracy ±10% -10 - +20% 0 - +20%
