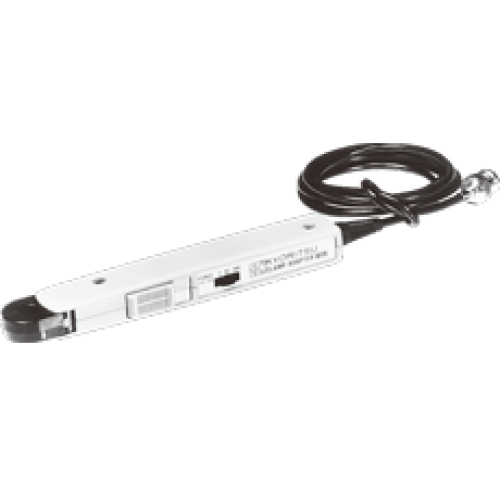

Model 8112BNC is an AC clamp adaptor designed for use with oscilloscopes. Output cord has a BNC connector which enables direct observation of current waveform on oscilloscope. Refer to a diagram shown at left for application. Specifications are same as those for Model 8112.
 Example of Model 8112 BNC application |
|
| Range |
Measuring Ranges |
Output Voltage |
Accuracy |
Frequency Response |
| 200mA |
AC 0~500mA |
AC1V/A
(1000mA→1V) |
|±1.5%rdg±0.2mA |
50Hz~1kHz |
| AC 0~1000mA |
|±3%rdg±0.4mA |
40Hz~10kHz |
| 2A |
AC 0~20A |
AC100mV/A
(20A→2V) |
|±1%rdg±1mA |
40Hz~1kHz |
| |±1.5%rdg±2mA |
1k~10kHz |
| 20A |
AC 0~20A |
AC10mV/A
(120A→1.2V) |
|±1%rdg±0.01A |
40Hz~1kHz |
| AC 20~60A |
|±2.5%rdg |
50Hz~10kHz |
| AC 60~120A |
|±2.5%rdg |
100Hz~10kHz |
| Conductor Size |
Ø8mm max. |
| Frequency Response |
30Hz~100kHz (-3dB) |
| Withstand Voltage |
500V AC for 1 minute |
| Dimensions |
153(L) × 18(W) × 23(D)mm |
| Weight |
100g approx. |
| Accessories |
9057 (Carrying Case)
Instruction Manual |
|
|
