| DT-117 |
DIGITAL MULTIMETER |
| |
 |
|
| Max. readout |
4000 Count |
| Sampling rate |
3 times/sec. |
| Power supply |
AA (R6) batteries × 2 |
| Battery life |
Approx. 400 Hrs. |
| Auto power OFF |
30 minutes |
| Outer dia. |
70 (W) × 32.5 (H) × 157.5 mm |
| Weight |
235 g |
|
|
| ■ |
With accessory DT-113-1 / carrying case (DT-510Z) |
|
| |
 |
|
 |
|
| |
| DT-117-TA |
DIGITAL MULTIMETER (with calibration certificate) |
| |
|
|
  |
| * |
Because the certificate will bear the purchaser's name (company name, etc.) , your name is required when ordering. |
|
|
|
| |
|
|

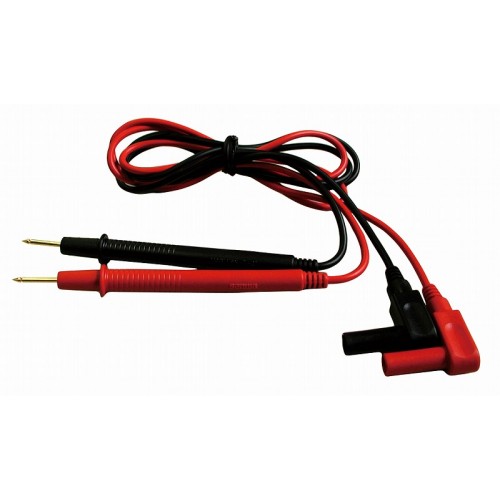

| DT-113-1 |
TESTER PROBE (PIN TYPE) |
|
| |
|
|
|
| Function |
Range |
Accuracy |
Internal resistance |
Remarks |
DC voltage
DCV |
400.0 mV |
± (0.5%rdg + 2 dgt) |
Approx. 100 MΩ or higher |
|
| 4.000 V |
± (0.9%rdg + 2 dgt) |
Approx. 11 MΩ |
| 40.00 V |
Approx. 10 MΩ |
| 400.0 V |
| 1000 V |
± (1.0%rdg + 2 dgt) |
AC voltage
ACV |
4.000 V |
± (1.2%rdg + 9 dgt) |
Approx. 11 MΩ |
|
| 40.00 V |
± (1.2%rdg + 5 dgt) |
Approx. 10 MΩ |
| 400.0 V |
| 750 V |
± (1.5%rdg + 5 dgt) |
Resistance
Ω |
400.0 Ω |
± (1.5%rdg + 5 dgt) |
|
| 4.000 kΩ |
± (1.2%rdg + 4 dgt) |
| 40.00 kΩ |
| 400.0 kΩ |
| 4.000 MΩ |
± (1.8%rdg + 2 dgt) |
| 40.00 MΩ |
± (3.0%rdg + 2 dgt) |
DC current
DCA |
400.0 μ A |
± (1.5%rdg + 2 dgt) |
Approx. 100 Ω |
|
| 4000 μ A |
| 40.00 μ A |
Approx. 1 Ω |
| 400.0 μ A |
| 4.000 A |
± (2.0%rdg + 2 dgt) |
Approx. 0.01Ω |
| 20.00 A |
* Continuous measurement is 5 A or lower |
AC current
ACA |
400.0 μ A |
± (1.8%rdg + 5 dgt) |
Approx. 100 Ω |
|
| 4000 μ A |
| 40.00 μ A |
Approx. 1 Ω |
| 400.0 μ A |
| 4.000 A |
± (2.5%rdg + 5 dgt) |
Approx. 0.01Ω |
| 20.00 A |
* Continuous measurement is 5 A or lower |
Continuity test |
● Audible at approx. (10 to 120 W) or less
● Release voltage: approx. 0.4 V |
Diode test |
● Release voltage: approx. 1.5 V |
Capacitance
F |
50.00 nF |
± (5%rdg + 6 dgt) |
* Auto range only |
| 500.0 nF |
| 5.000 μF |
| 50.00 μF |
| 100.0 μF |
|
|
