| CL-901 |

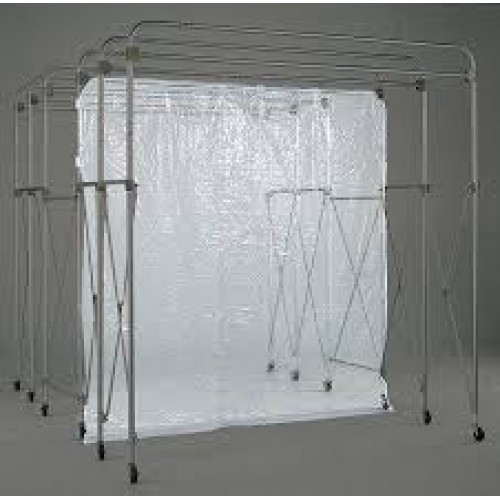

CLEAN BOOTH |
 |
|
| |
| ■ |
A fan filter unit and booth are included with the CL-901. |
|
| Fan Filter Unit (FFU) |
| Rated voltage / frequency |
100 VAC 50 / 60 Hz |
| Power consumption |
60 / 64 W (50 / 60 Hz) |
| Filter type |
HEPA (main filter) ,
non-woven fabric (pre-filter) |
| Trapping efficiency |
0.3 mm 99.97% or higher |
| Airflow rate |
9.0 / 10.5 m3 / min (50 / 60 Hz) |
| Airflow velocity |
0.4 / 0.5 m / s (50 / 60 Hz)
(with HEPA / Pre-filter installed) |
| Weight |
12 kg (with HEPA / Pre-filter installed) |
|
| |
| Booth |
External
dimensions |
2000 (W) × 2200 (H) × 850 to 2500 (D) mm |
| Booth capacity |
3.3 to 11m3 |
| Air exchange rate |
163 to 49 times/hr (50Hz)
190 to 57 times/hr (60Hz)
(min. size to expanded size) |
| Cleanliness class |
1000 to 10000 |
| Sheet material |
Fiber reinforced PVC sheet
(contains antistatic agent) thickness 0.3mm |
| Frame material |
Aluminum |
| Weight |
39.5 kg |
|
|
| |
 |
|
|
