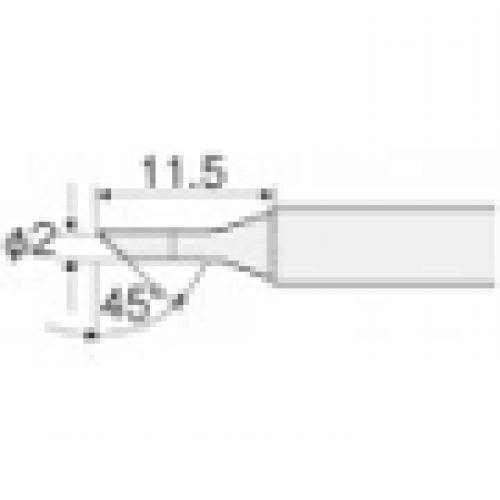

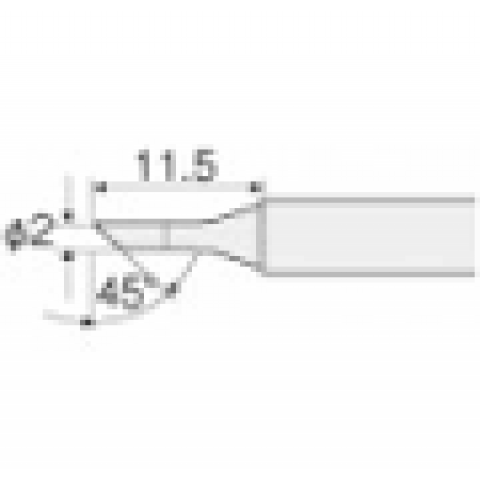

HZ HS51C02 SOLDER TIP

  • HZ HS51C02 SOLDER TIP

HZ HS51C02 SOLDER TIP

    • S$22.62

       (Ex Tax: S$20.75)
  • Availability: Out Of Stock

HS-51 SOLDERING STATION


    HS-51-220
● Speedy replacement of tips without requiring a tool.
● A setting lock feature is provided to secure the soldering temperature. This feature uses a password, and does not require a card or key.
● Features a sleep function (sleep sensitivity & time setting: 0 to 20°C & 0 to 999 minutes).
● Auto shut-off activated when a preset time elapses (setting range: 0 to 999 minutes).
● Station stacking is possible.

Rated voltage / Frequency 100 VAC, 50 / 60Hz
Power consumption 80 W (soldering iron 72W)
Heater Nichrome heater with sensor
Setting temperature 50 to 450°C
Standard tip Tip (with built-in heater) is sold separately.
External dimensions Station
115 (W) × 98 (H) × 146 (D) mm
Soldering iron
Length 158 mm × grip inner dia. 16 mm
Weight Station 1.8 kg
Soldering iron 28 g (not including the cord)
ESD standard Ground resistance Rg < 1 × 1012Ω
■ Power cord: 1.2 m
■ Accessory: Soldering iron stand (tip cleaner)
HS-51 Temperature characteristics
Temperature conditions Temperature setting 400°C
Solder used Lead-free solder HS-302
(Sn-Ag type) 0.6 mm ¢
Solder conditions 5 mm of soldering
per 3 seconds
Soldering iron tip used HS-51B03 (standard tip)
Replacement part
HS-51-1 TIP CLEANER
■ For HS-51
HS-51-4 TIP CLEANER
■ For HS-51
Optional parts
SOLDERING TIPS (for HS-51)

*
* Custom-order tip shapes and sizes are possible.
When using a thin tip, adequate pre-soldering should be performed first.
(Example: HS-51B01 to HS-51B02, etc.)

HS-51B03
■ B type
HS-51B01
■ B type
HS-51C01
■ C type
HS-51D01
■ D type
HS-51B02
■ B type
HS-51C02
■ C type
HS-51D03
■ D type
HS-51BC01
■ BC type
HS-51C03
■ C type
HS-51K02
■ K type
