HZ H710 LEADFREE SOLDER

  • HZ H710 LEADFREE SOLDER

HZ H710 LEADFREE SOLDER

    • S$18.31

       (Ex Tax: S$16.80)
  • Brand: HOZAN
  • Availability: Pre-Order

Tin-Lead Type Solder Series

H-712 / 714 / 716 SOLDER (non-washing, RMA type)

● Uses an ESD-safe bobbin.

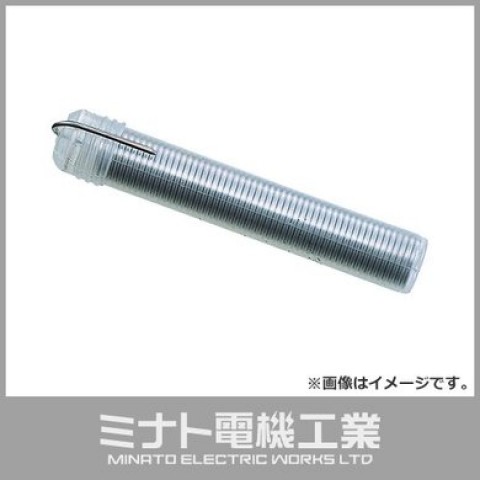

H-710 SOLDER FOR STAINLESS STEEL

● Usable with nearly all metals (stainless, nichrome, copper, brass, nickel plating, galvanized, bimetal, tin plate, steel, etc.) except for aluminum and titanium.
● The water-base flux is easily washed off with water.
Plastic
characteristics		 Component Solid / liquid phase
temperature		 Wire dia. mm ¢ Weight
g		 Length m
(reference) 		 Bobbin
type		 Part No.
0.3 0.6 0.8 1.0 1.6
Sn60-Pb40 183°C/190°C ●         100 204 M H-712
  ●       200 107 M H-714
－     ●     20 4.2 SS H-711
    ●     200 53 M H-42-3707
    ●     500 134 L H-42-3717
－       ●   20 3.4 SS H-700
      ●   200 38 M H-716
      ●   500 86 L H-42-3719
      ●   1000 172 LL H-42-3720
Sn50-Pb50 183°C/215°C       ●   200 33 M H-42-3703
      ●   1000 166 LL H-42-3723
        ● 200 13 M H-42-3705
        ● 1000 64 LL H-42-3725
－ Sn40-Pb60 183°C/234°C         ● 40 2.5 SS H-710
Solder types and their characteristics
  Reliability Cost Ease
of use		 Luster Liquid phase
temperature		 Soldering iron
tip life		 Wettability RoHS
compliant
Sn-3Ag-0.5Cu ○ △ ○ △ ○ (220°C) △ ○ ◎
Sn-0.3Ag-0.7Cu △ ○ △ △ ○ (226°C) △ ○ ◎
Sn-0.7Cu △ ◎ △ ○ △ (227°C) ○ △ ◎
Sn-Pb ◎ ◎ ◎ ◎ ◎(190°C) ◎ ◎ ×
