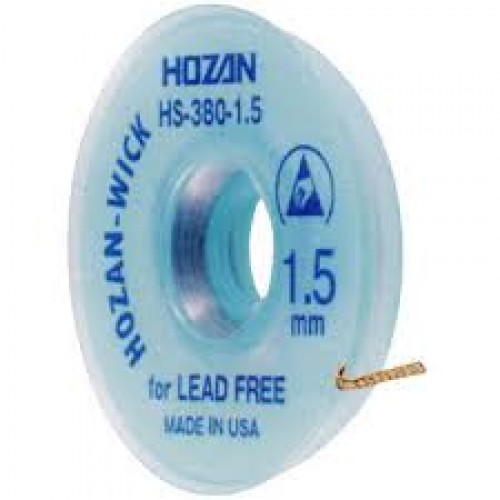

HZ HS380-1.5 DESOLDER BRAIDS

  • HZ HS380-1.5 DESOLDER BRAIDS

HZ HS380-1.5 DESOLDER BRAIDS

    • S$5.67

       (Ex Tax: S$5.20)
  • Brand: HOZAN
  • Availability: Out Of Stock

DESOLDER BRAIDS
● Antistatic material is used for the ESD*1 bobbin. (Ground resistance Rg < 1 ×1012Ω)
(Does not apply to No.3734)
*1. ESD (Electro-Static Discharge) bobbin is made from material of ESD safe.

Solder braids should be heated with a 30 W or higher soldering iron. However, for braid widths of 0.9 / 1.3 mm, a low heat capacity soldering iron should be used.

HS-380-1.5 / 2.0 / 2.5

● Has excellent heat transfer properties, and dramatically increases the workability of lead-free solder when used with a high-performance flux.
Part No. Wire width
mm		 OAL
mm		 ESD standard
Ω
HS-380-1.5 1.5 1.5 Ground resistance
Rg < 1 × 1012
HS-380-2.0 2.0
HS-380-2.5 2.5


No.3736 / 3737 / 3738 / 3739

Part No. Wire width
mm		 OAL
mm		 ESD standard
Ω
No.3736 0.9 3 Ground resistance
Rg < 1 × 1012
No.3737 1.3 1.5
No.3738 2.5
No.3739 3.8


Bargain extra-length type
No.3734
Wire width 2.5 mm
OAL 15 m
* No.3738 is the extra-long type
