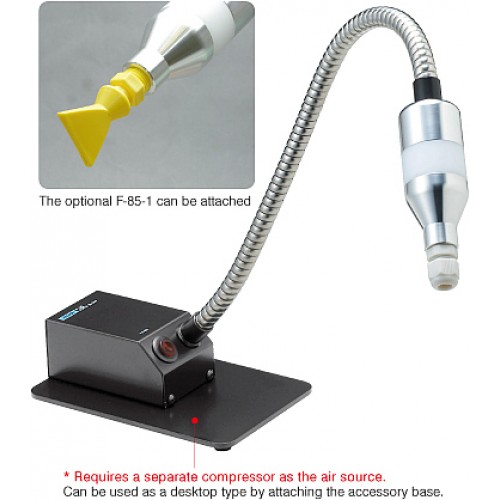

HZ F90 BENCH TOP IONIZER

  • HZ F90 BENCH TOP IONIZER

HZ F90 BENCH TOP IONIZER

    • S$886.72

       (Ex Tax: S$813.50)
  • Brand: HOZAN
  • Availability: Pre-Order


■ Attachment hose dia.: 4 mm ¢
Air source Compressor
Air consumption 60L/min (at 0.3MPa)
Rated voltage 24 VDC (with AC adapter)
Output voltage AC4 kV±15%
Power
consumption		 0.5W
External
dimensions		 Unit body 63 (W) × 40 (H) × 90 (D) mm
Electrode 34 mm ¢ × 80 mm
(Arm length: 290 mm)
Weight 400 g
ESD standard Max. of 20 secs. for charge
decay from 1000 V to 100 V
■ Power cord: 1.6 m
Pipe frame used in the cell production can be installed (F-84-2 used)

*1. Ion balance…The balance of positive and negative ions supplied by the ionizer.
Optional parts
F-84-2 PIPE HOLDER
■ For F-84/90/91
F-85-1 FLAT NOZZLE
● Blows air in a "flat" pattern.
● The nozzle tip angle can be freely adjusted.
● CL-886 / F-85 / 88 standard accessory nozzle.

100V TYPE
