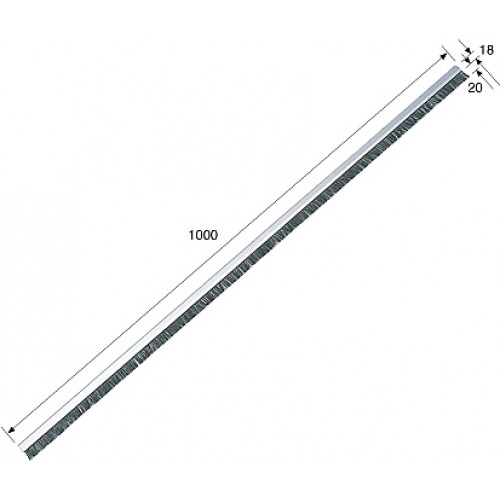

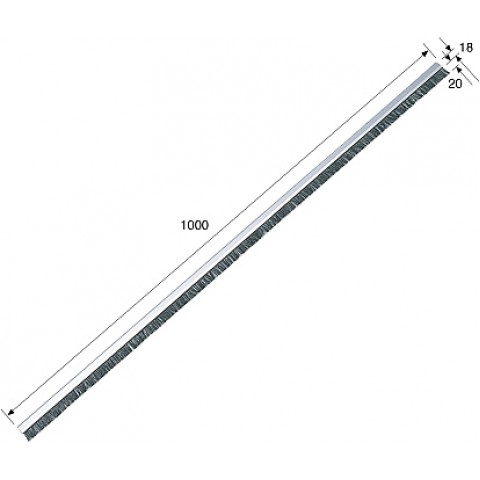

HZ F60 ESD BRUSH

Qty

●	The aluminum frame is easily cut to the desired length.

Brush Material	Ultra-Fine stainless wire (Wire dia. 12 µm¢)
Frame thickness	5 mm
Weight	220 g

12 micron SUS ultra-thin wire

ESD brush principle and usage method

Neutralizing an object with 10,000 V or higher down to 2-3,000 V.

Creating a small gap between the grounded ESD brush and the charged object generates

and

ions around the brush, and these ions neutralize the charged object .

Method for reducing the object's charge to near 0 V.

Touching the charged object with the grounded ESD brush makes a path of leakage current, thus neutralizing the charged object.
