HZ P90B WIRE STRIPPERS

  • HZ P90B WIRE STRIPPERS

HZ P90B WIRE STRIPPERS

    • S$47.96

       (Ex Tax: S$44.00)
  • Brand: HOZAN
  • Availability: In Stock

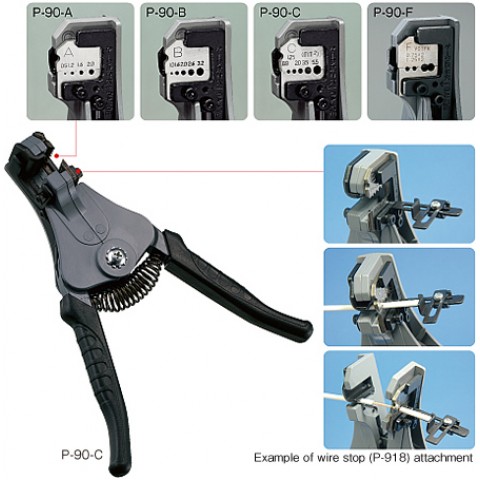

● With wire stop. Stripping length can be set within a 4 to 25 mm range.
Part no. Weight
g		 handle
color
P-90-A 350 Green
P-90-B Red
P-90-C Black
P-90-F Blue


Replacement parts
REPLACEMENT BLADES
Part no. Compatible items
P-910 P-90-C
P-911 P-90-A
P-912 P-90-B
P-915 P-90-F
P-918 WIRE STOP

Compatible wire size table
Note: The stranded wire outer dia. and the plain wire structure vary somewhat according to the manufacturer.
AWG No. 24       18     16   14 12 10 8
Min. single wire outer dia. (mm) 0.51       1.02     1.28   1.61 2.03 2.56 3.28
Stranded wire min.
cross-sectional area mm2		 0.20 (JIS)
0.3		 (JIS)
0.5		 (JIS)
0.75		 0.81 (JIS)
0.9		 (JIS)
1.25		 1.28 (JIS)
2.0		 2.04 3.24 5.16 8.20
Stranded wire outer dia. mm 0.6
0.7		 0.69
0.75		 0.9
0.98		 1.07
1.15		 1.2
1.4		 1.2～
1.26		 1.35
1.47		 1.6
1.8		 1.8
1.86		 1.95
2.0		 2.4
2.5		 2.6
3.1		 3.9
4.4
P-90-A Hole
indications		 Single
wire mm		 Single wire 0.5             1.2   1.6 2.0
Stranded wire     1.2 1.6     2.0
P-90-B Single wire         1.0         1.6 2.0 2.6 3.2
Stranded wire   1.0   1.6     2.0   2.6
P-90-C Stranded
wire mm2		 Stranded wire           0.9 1.25 1.25 2.0 2.0 3.5 5.5
P-90-F VCTFK wire
(also usable for cable sheaths)		       0.75/
1.25		     0.75/
1.25
