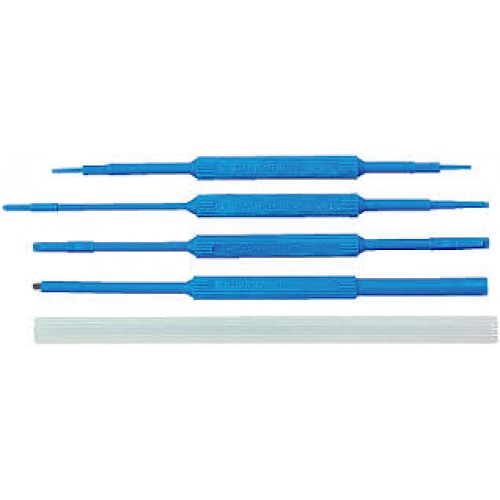

HZ D16 ALIGNMENT TOOL KIT

  • HZ D16 ALIGNMENT TOOL KIT

HZ D16 ALIGNMENT TOOL KIT

    • S$7.36

       (Ex Tax: S$6.75)
  • Brand: HOZAN
  • Availability: Out Of Stock


● These alignment tools are used to adjust ferrite cores and semi-fixed volumes.
● Material: Polyacetal
Set contents D-16-1B / D-16-2B / D-16-3B /
D-16-4B / D-16-5
Color D-16-1B to 4B Blue / D-16-5 White
Weight 45 g


Alignment tool
Part no. Tip size
mm		 Weight
g
D-16-1B
1.35 × 0.7 / 1.4 × 0.8
1.4 / 1.52.6 / 2.7
3
D-16-2B
1.9 × 0.9
1.95 / 2.0 / 2.6 / 2.65
D-16-3B
2.65 × 1 / 3.1 × 1.2
2.65 / 3.1 / .18 / 3.35
D-16-4B
2.3 × 0.4
3.6 × 0.4 (with guide)
4
D-16-5
◎ Inner ¢ 5.5
  Outer dia.: ¢ 8.0
3
*Unnecessary sizes can be cut, and then used.
