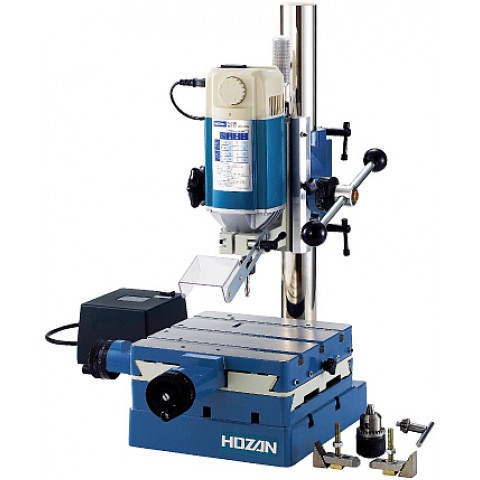

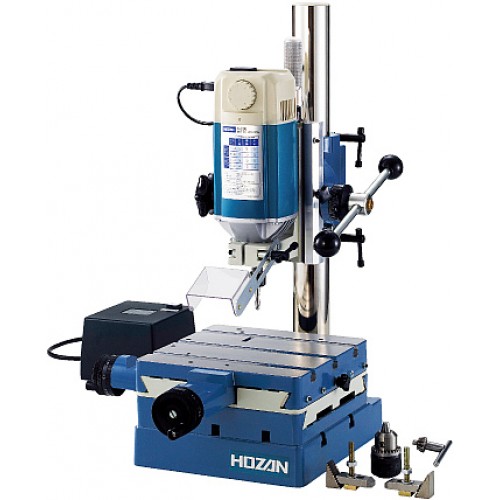

HZ K280-100V MILLING MACHINE

  • HZ K280-100V MILLING MACHINE

HZ K280-100V MILLING MACHINE

    • S$1,290.56

       (Ex Tax: S$1,184.00)
  • Brand: HOZAN
  • Availability: Out Of Stock

Compact milling & Drilling machine
■ Accessories: Drill chuck, clamp (blades are sold separately)
Rotation speed 1200 to 6000 rpm
Spindle axial play 0.05mm (not including chuck)
Chucking dia. For end-milling dedicated 6 mm ¢ *1
For drilling 1.0 mm to 10.0 mm ¢
Rated voltage 39 VAC (with accessory 100 VAC
dedicated transformer)
Power consumption 200 W
Rated time 30 minutes
External
dimensions		 350 (W) × 505 (H) × 420 (D) mm
(base) 200 (W) × 200 (D) mm
Sliding Base right / left 140 mm
Front / back 110 mm
(front 70 mm, back 40 mm)
Drill stand up / down 65 mm
Weight 5.9 kg (drill stand) + 3.7 kg (table)
+ 1.9 kg (motor) + 2.5 kg (transformer)
Total weight: approx. 14 kg.
■ Power cable: 1.7m (from plug to transformer)
*1 Blades with diameters exceeding 6 mm cannot be used.
Drilling by attaching the accessory drill chuck. Milling by attaching a milling cutter
* The drill bit is sold separately. * The milling cutter is sold separately.
Note Continuous operation which exceeds 30 min. can cause a motor failure, etc.
Even on & off at 1 to 2 minute intervals is considered continuous.
Optional items
K-280-3 / 4 / 5 / 6 MILLING CUTTER
Part No. Size
mm		 Blade length
mm		 OAL
mm		 Blade diameter
mm ¢
K-280-3 3 10 55 6
K-280-4 4 12 60
K-280-5 5 15
K-280-6 6
■ Material: Cobalt
■ Blade type: Square (double blade)

K-53 V-BLOCK
K-26 VISE
K-5 / 493 / 494 / 495 DRILL BIT SET
