HZ K21-100v DESK DRILL PRESS

  • HZ K21-100v DESK DRILL PRESS

HZ K21-100v DESK DRILL PRESS

    • S$405.26

       (Ex Tax: S$371.80)
  • Brand: HOZAN
  • Availability: In Stock

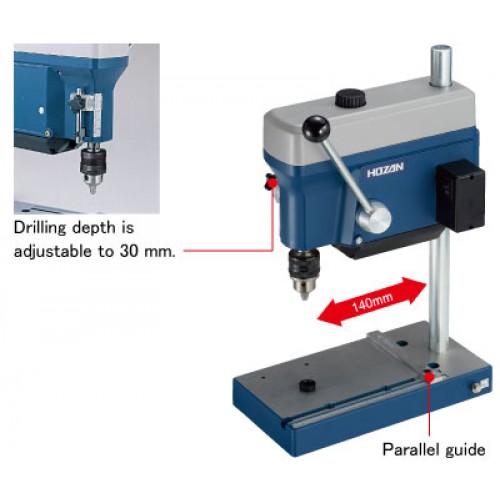

● With adjustable cutting depth (max. 30 mm)
Spindle rotation 2100 / 4500 / 6200 rpm
speed (adjustable pulley &
belt configuration)
Drilling capacity For iron and non-ferrous 6.0 mm ¢
Spindle axial play 0.04mm (not including chuck)
Chucking dia. 0.8 to 6.0 mm ¢
Rated voltage /
frequency		 100 VAC 50 / 60 Hz
Power consumption 80 W
Rated time 15 minutes
External dimensions 120 (W) × 350 (H) × 225 (D) mm
Weight 4 Kg
■ Power cable: 2m

Replacement part
K-21-14 BELT
■ For K-21 / 20.
Optional items
K-21-1 COLLET CHUCK
● A collet chuck can be mounted on
the K-21 to suppress axial play to a
0.04 mm.
* Cannot be used on the K-15 and K-16.
■ Compatible drills:
1.0 / 1.5 / 2.0 / 2.4 / 3.0 mm ¢
(Collets are dedicated to each size.)
■ For K-21

K-24 VISE
K-50 XY-TABLE
K-53 V-BLOCK
K-5 / 493 / 494 / 495 DRILL BIT SET
Note

Continuous operation which exceeds 15 min. can cause a motor failure, etc.
Even on & off at 1 to 2 minute intervals is considered continuous.
