• Power Dissipation: 50 watts
• Value Range: From 6R04
• Tolerance Options: From ±1%
• TCR Options: ±25ppm - 100ppm/°C (re ohmic value)
• Maximum Voltage: 1.25kVdc
• Dielectric Strength: 2.5kVac

Product description

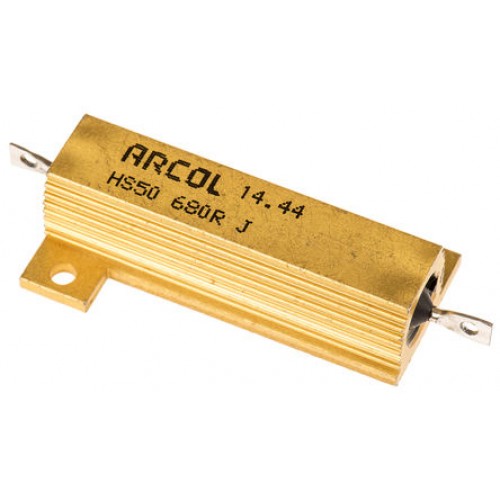

50 watt aluminium housed power resistor. Manufactured to meet the requirements of MIL 15546 and IEC 115 and are of course RoHS compliant.

Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
