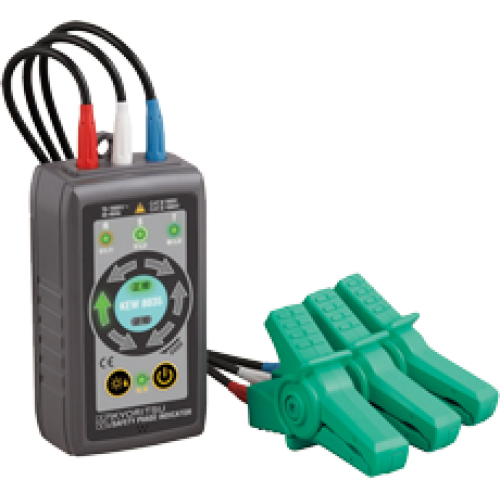

KM 8035 Non-Contact Safety Phase Indicator

Qty

•	New technology permits safe testing, without the need of direct contact between probes and live wires.
•	The insulated crocodile clips can clip insulated cables from φ2.4 to 30mm.
•	Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones.
•	The instrument can be fixed to a metal panel via the magnet on the back side.
•	Wide measuring range for 3 phase installations from 70V to 1000V AC.
•	Super brightness function permits clear LED's indication also in sunshine.
•	Complies with IEC 61010-1 CAT.IV 600V and CAT.III 1000V.

Functions

Phase rotation (Clockwise or Counter Clockwise),
Presence of open phase

Detection method

Electrostatic induction

Measuring voltage range

From 70 to 1000V AC phase to phase (sine wave, continuous input)

Clamp diameter range

From φ2.4 to 30mm insulated cables

Measuring frequency range

45 to 66Hz

Phase rotation

Clockwise:
	Green arrow LEDs "rotate" in clockwise, Green symbol "CW" lits, Intermittent buzzer

Counter Clockwise:
	Red arrow LEDs "rotate" in counter clockwise, Red symbol "CCW" lits, continuous buzzer

Visual indication

Via LEDs with Super brightness function

Battery voltage warning

Power LED blinks if battery voltage is too low.

Operating conditions

Temperature/Humidity Ranges -10 to 50ºC, 80% (no condensation)

Storage conditions

Temperature/Humidity Ranges -20 to 60ºC, 80% (no condensation)

Applicable standards

IEC 61010-1 CAT.IV 600V, CAT.III 1000V Pollution degree2,
IEC 61326-1, IEC 61557-1, -7

Power supply

Alkaline battery (LR6) ×4
* Continuous use: Approx. 100 hours (Auto power off in about 10 min.)

Dimensions

112(L) × 61(W) × 36(D) mm

Weight

Approx. 380g

Test leads

Double insulated cables, length approx. 70cm

Colours code

L1(U): Red

L2(V): White

L3(W): Blue
