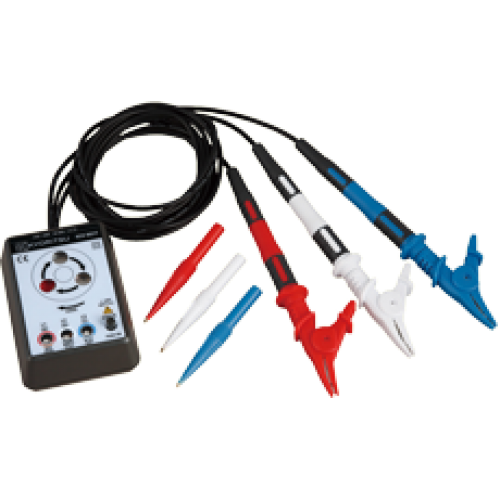

KM 8031F Phase Rotation Tester with fused test leads

  • KM 8031F Phase Rotation Tester with fused test leads

KM 8031F Phase Rotation Tester with fused test leads

    • S$218.00

      S$197.29

       (Ex Tax: S$181.00)
  • Brand: KYORITSU
  • Availability: In Stock

KEW8031F is designed to check phase sequence.
Lamps provided on the unit will also tell you if a phase is open.
Can check a wide range of 3-phase power source from 110V to 600V.
Sealed against dust, the unit ensures trouble-free performance.
Small, Lightweight and portable.
Designed for maximum ease of operation and ruggedness.
No exposed metal parts, Safety features are incorporated including the instant push button switch operation.


Operational Voltage 110~600V AC
Fuse 0.5A/600V (F)
Time limit for continuous >500V : within 5 minutes
Frequency Response 50Hz/60Hz
Applicable Standards IEC 61010-1 CAT.III 600V Pollution Degree 2
Withstand Voltage 5550V AC for 1 minute
Dimensions 106(L) × 75(W) × 40(D)mm
Weight 350g approx.
Cord 1.5m (R:red S:white T:blue)
Accessories Carrying Case, Instruction Manual
