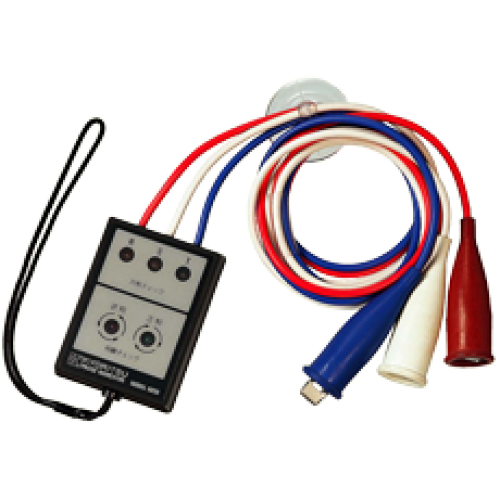

KM 8030 PHASE INDICATOR

Qty

•	Digital Phase Indicator with open phase checker
•	Phase indicator designed to check the presence of open phase and also the phase sequence by LED and buzzer at the same time.
•	Small, lightweight, and portable.

	CE Type	Standard Type
Operational voltage	200~480V AC
Time limit for continuous	200V: within 60 minutes 480V: within 4 minutes
Frequency response	20~400Hz
Applicable standards	IEC 61010-1 CAT.III 300V Pollution degree 2	--
Withstand voltage	2200V AC for 1 minute
Dimensions	82(L) × 59(W) × 23(D)mm
Weight	200g approx.
Cord	1m (R: red S: white T: blue)
Accessories	9070 (Carrying Case) Pins for test leads Instruction manual
