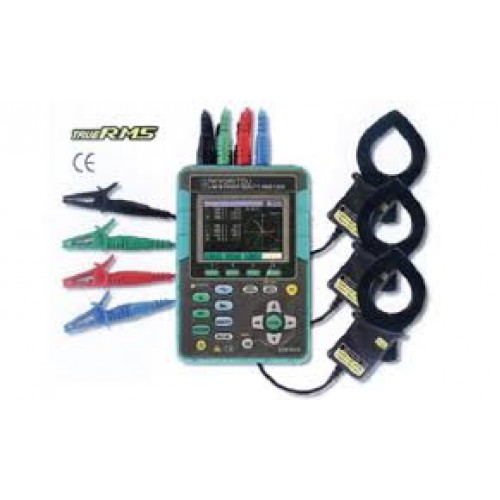

 Power Quality Analyzer

KEW 6315



• Simultaneous Power & Power quality measurements
Power/ Harmonics/ Waveform/ Power quality are recorded at all CHs. (Voltage: 3ch, Current 4ch)

• Helpful support functions
Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement

-Measurement with high accuracy
 Guaranteed accuracy: ±0.3%rdg (energy),
±0.2%rdg (voltage/ current)
Complies with the International Standard IEC 61000-4-30 Class S
and the European Standard EN50160

• Remote monitoring on PC and Android device
Remote checking of measurement in real-time is possible via Bluetooth communication.
Recorded data can be saved in the supplied SD card.
EN50160 report can be generated after survey by PC software.

~~
• Various Clamp Current Sensors
Various types of clamp and flexible sensors are available:
from 1000mA Range up to 3000A Range and Earth leakage measurements

• Energy consumption check on site
Trend and demand graphs for easy recognition.
TFT color display with high resolution.

• IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V

Free Android software "KEW smart 6315" is available
on "Google Play Store" (*) •Supporting Android ver. 2.2 - 4.2
•WVGA (800 × 480) resolution or higher


(*) Please search "KEW Smart" in Google Play Store.
Communication charge may be incurred separately to download application.


 CE TYPE

Applicable model list		Product Catalogue		Software
		Quick Manual		Instruction Manual
