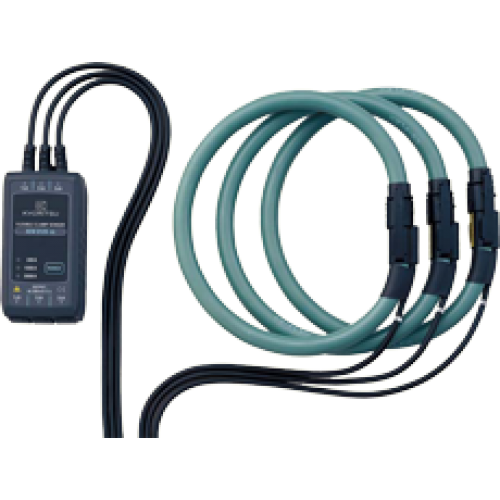

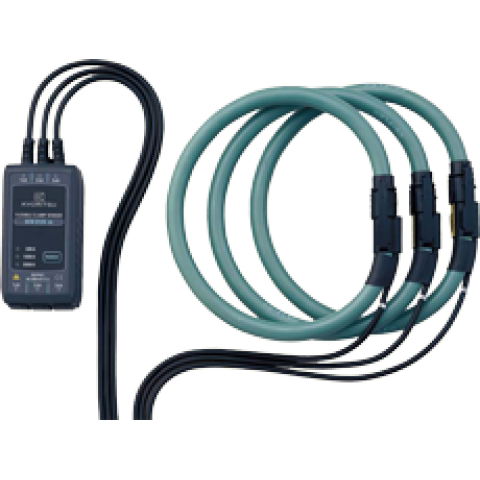

KM 8129-03 (3channel) Flexible Clamp Sensor

S$1,236.06
(Ex Tax: S$1,134.00)

Brand: KYORITSU
Availability: In Stock

Qty

Description

	8129-01 (for 1ch)
	8129-02 (for 2ch)
	8129-03 (for 3ch)

•	Flexible for various test fields
•	Can measure AC current up to 3000A
•	Flexible and light weight by the air core coil used at the sensor part
•	Measurable conductor size: max Φ150mm
•	Designed to meet the international safety standard IEC 61010-1 CAT.III 600V

Applicable model

5010/5020 (*), 6300, 6305, 6310

*	When you use the sensors with KEW5010/5020, please check the "Applicable model list" to check if your KEW5010/5020 can be used with the sensors.

8129-01 (for 1ch)

8129-02 (for 2ch)

8129-03 (for 3ch)

Conductor size

max. Φ150mm

Rated current

300/1000/3000A

Output voltage

300A Range	:	AC500mV/AC300A (1.67mV/A)
1000A Range	:	AC500mV/AC1000A (0.5mV/A)
3000A Range	:	AC500mV/AC3000A (0.167mV/A)

Accuracy

|±1.0%rdg (45~65Hz)

Phase Shift

within ±1°

Withstand voltage

AC5350V for 5 seconds
300A Range	:	30~300A (45~65Hz)
1000A Range	:	100~1000A (45~65Hz)
3000A Range	:	300~3000A (45~65Hz)

Cable length

Sensor part : approx. 2m
Output cable : approx. 1m

Output connector

MINI DIN 6PIN

Operating temperature & humidity ranges

0~50ºC, relative humidity 85% or less (no condensation)

Output impedance

100Ω or less

Applicable standards

IEC 61010-1, IEC 61010-2-032 CAT.III 600V Pollution degree2,
IEC 61326

Dimensions

111(L) x 61(W) x 43(D) mm (except for protrusions)

Weight

Approx. 410g

Approx. 680g

Approx. 950g

Accessories

Instruction Manual
7199 (Output Cable) x1
9137 (Carrying Case)

Instruction Manual
7199 (Output Cable) x2
9137 (Carrying Case)

Instruction Manual
7199 (Output Cable) x3
9137 (Carrying Case)

**For orders, please advise if you require 8129-01 or 8129-02 or 8129-03 ? Email us at componmt@singnet.com.sg.
