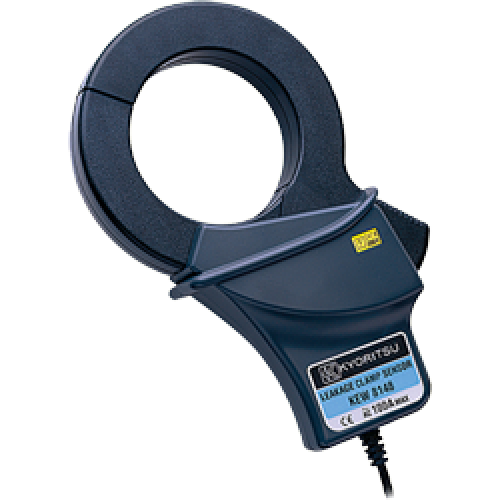

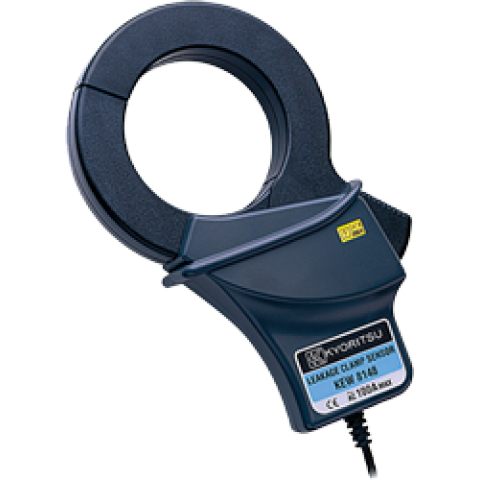

KM 8148 Leakage and Load Current Clamp Sensor

  • KM 8148 Leakage and Load Current Clamp Sensor

KM 8148 Leakage and Load Current Clamp Sensor

    • S$313.92

      S$298.44

       (Ex Tax: S$273.80)
  • Brand: KYORITSU
  • Availability: Out Of Stock

Applicable model listApplicable model list Product Catalogue


Applicable model 5010/5020, 6310

* Cannot be used for power measurement.

Ø68 AC 100A

CE



Conductor size Φ68
Rated current AC 100A
Output voltage AC 5000mV/100A (AC 50mV/A)
Accuracy 0~80A
|±1.0%rdg±0.1mV (50/60Hz)
|±2.0%rdg±0.2mV (40Hz~1kHz)

80~100A
|±5.0%rdg (50/60Hz)
|±10.0%rdg (45Hz~1kHz)
Withstand voltage AC 3540V for 5 seconds
Cable length Approx. 2m
Output connector MINI DIN 6pin
Operating temperature ranges 0~50ºC, less than 85% RH (without condensation)
Output impedance Approx. 60Ω
Applicable standards IEC 61010-1:2001,
IEC 61010-2-032:2002,
CAT.III 300V pollution degree 2
Dimensions 186(L) x 129(W) x 53(D) mm
Weight Approx.510g
Accessories 9094 (Portable case), Instruction manual, Cable marker
Option 7146 (Banana Φ4 adjuster plug)
7185 (Extension Cable)
