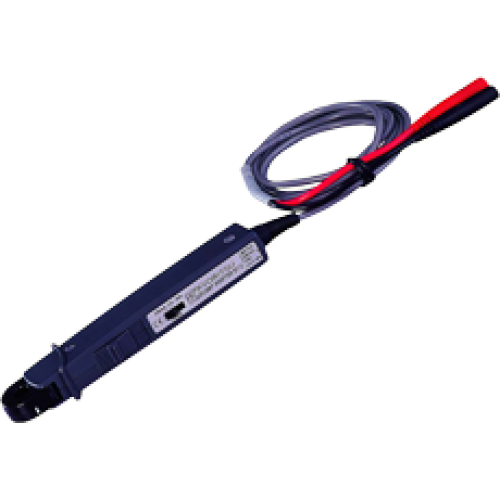

Model 8112 clamp adaptor is designed to be an AC current/voltage conversion probe capable of measuring AC current from 0.1mA to 120A in conjunction with digital multimeters. Simple to operate, the unit has range switch position at 200mA,2A and 20A. It also features safety design throughout with no exposed metal parts.
| Range |
Measuring Ranges |
Output Voltage |
Accuracy |
Frequency Response |
| 200mA |
AC 0~500mA |
AC1V/A
(1000mA→1V) |
|±1.5%rdg±0.2mA |
50Hz~1kHz |
| AC 0~1000mA |
|±3%rdg±0.4mA |
40Hz~10kHz |
| 2A |
AC 0~20A |
AC100mV/A
(20A→2V) |
|±1%rdg±1mA |
40Hz~1kHz |
| |±1.5%rdg±2mA |
1k~10kHz |
| 20A |
AC 0~20A |
AC10mV/A
(120A→1.2V) |
|±1%rdg±0.01A |
40Hz~1kHz |
| AC 20~60A |
|±2.5%rdg |
50Hz~10kHz |
| AC 60~120A |
|±2.5%rdg |
100Hz~10kHz |
| Conductor Size |
Ø8mm max. |
| Frequency Response |
30Hz~100kHz (-3dB) |
| Safety Standard |
IEC 61010-1 CAT.II 100V Pollution Degree 2 |
| Withstand Voltage |
500V AC for 1 minute |
| Dimensions |
153(L) × 18(W) × 23(D)mm |
| Weight |
100g approx. |
| Accessories |
9057 (Carrying Case)
Instruction Manual |
|
