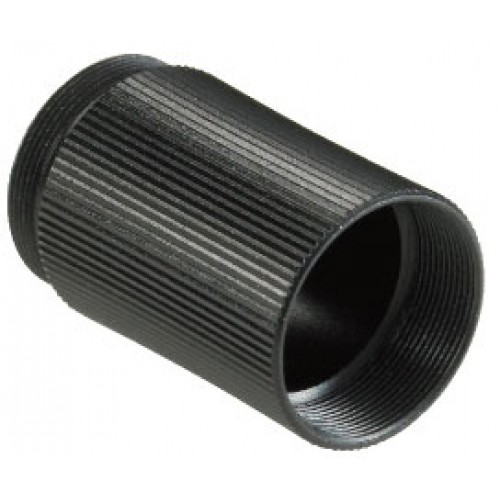

HZ L819 Extension Ring

  • HZ L819 Extension Ring

HZ L819 Extension Ring

    • S$38.15

       (Ex Tax: S$35.00)
  • Brand: HOZAN
  • Availability: Out Of Stock

Case of combining with L-802
Combination Magnification
×		 Field of view
mm		 Working distance
mm		 Resolution
at center
µm
Optical lens(with ring)+L-818+L-818 85 6.3×3.6 60 15.6
Optical lens(with ring)+L-819 100 5.1×2.82 53 13.9
Optical lens(with ring)+L-818+L-819 130 3.9×2.18 45 8.76
Optical lens(with ring)+L-819+L-819 180 2.82×1.59 38.9 6.95
Optical lens(with ring)+L-818+L-819+L-819 210 2.42×1.35 36.7 6.2
*Magnification is based on a 23 inch TV monitor wide screen.
It varies depending on the characteristics of the TV being used.
Case of combining with L-832
Combination Magnification
×		 Field of view
mm		 Working distance
mm
Optical lens(with ring)+L-818+L-818 56 6.3×4.8 66
Optical lens(with ring)+L-819 70 5.1×3.8 56
Optical lens(with ring)+L-818+L-819 93 3.9×2.9 50
Optical lens(with ring)+L-819+L-819 127 2.87×2.13 42.5
Optical lens(with ring)+L-818+L-819+L-819 147 2.41×1.86 39
*Magnification is based on a 23 inch TV monitor wide screen.
It varies depending on the characteristics of the TV being used.
