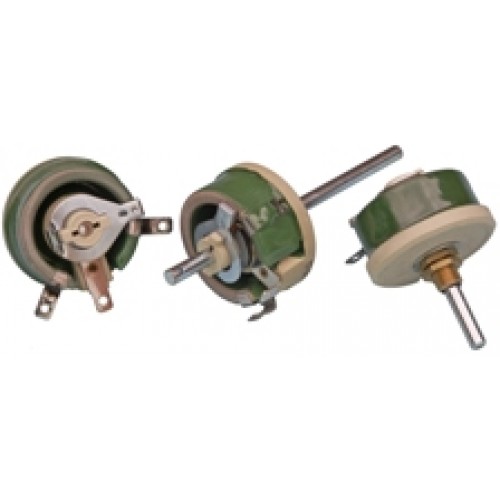

RH 50W 1K6 (TYPE 22/50)
RH 50W 1K6 (TYPE 22/50)
Type 22/50
Power 50W
Weight: 120g
Rotation 285 ±10 deg
Shaft (standard) 6mmØ
Mounting 10 X 1 MG
Required torque 250 - 1000 pcm
Contact (stand.) copper-graphite
Specifications
| Power Range | 50 W @ 25 °C |
| De-rating | 100%@25°C-75%@90°C |
| Environmental | -10°C - 70°C |
| Resistance Tolerance | ± 10% |
| Max surface temperature | 250 °C |
| Cooling media | Air |
| Connection | Solder; AMP; Screw; Cables |
