6024PV NEW PV INSULATION TESTER FOR SOLAR MARKET !!!!!!

  • 6024PV NEW PV INSULATION TESTER FOR SOLAR MARKET !!!!!!

6024PV NEW PV INSULATION TESTER FOR SOLAR MARKET !!!!!!

    • S$965.74

      S$887.26

       (Ex Tax: S$814.00)
  • Availability: In Stock

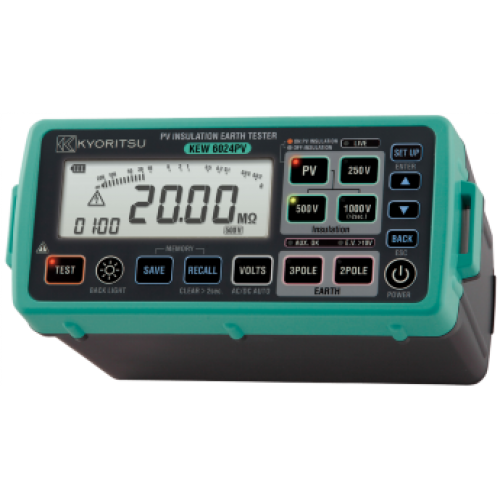

PV Insulation Earth Tester

KEW 6024PV

NEW
KEW 6024PV
CE

• Correct measuring for Insulation resistance even if the panel is under generating power
• Waterproof design: Can measure under the bad weather condition
• Memory function up to 1000 data
• Luminescence button and Backlight
  • Backlight
  • USB
  • AutoPowerOff

Insulation resistance　 PV insulation Insulation
　　　　　　　　　　　　 Test voltage 500V 1000V 250V  500V 1000V
Measuring range(Auto range) 20.00/200.0/2000MΩ 20.00/200.0/2000MΩ
Mid-scale value ― 50MΩ
Rated current ― 1.0-1.2mA
0.25MΩ 0.5MΩ 1MΩ
First effective measuring range 1.51-200.0MΩ 1.51-1000MΩ 1.51-100.0MΩ 1.51-200.0MΩ 1.51-1000MΩ
Accuracy ±1.5%rdg±5dgt ±1.5%rdg±5dgt
Second effective measuring range 0.00-1.50MΩ 0.00-1.50MΩ 1.20-1.50MΩ 1.20-1.50MΩ 1.20-1.50MΩ
200.1-2000MΩ 1001-2000MΩ 100.1-2000MΩ 200.1-2000MΩ 1001-2000MΩ
Accuracy ±5.0%rdg±6dgt
Open circuit voltage 0 - +20%
Short circuit current Max 1.5mA
Earth resistance　　　　　　
　 Measuring range(Auto range) 20.00/200.0/2000Ω
　 Accuracy ±3.0%rdg±0.1Ω (20Ωrange) ±3.0%rdg±3dgt (200/2000Ωrange)
Voltage measurement　　　　　　
　 Measuring range AC 5-600V (45-65Hz)　DC ±5-±1000V
　 Accuracy ±1.0%rdg±4dgt
General　　　　　　
　 Applicable Standards IEC 61010-1 CAT Ⅲ 600V, CAT IV 300V Pollution2
　 IEC 61010-2-030, IEC 61010-031(EMC), IEC 60529（IP54）, IEC 61557-1,-2,-5,-10, IEC 61326-1,2-2, EN50581(RoHS)
　 Power source LR6(AA)(1.5V) x 6
　 Dimensions / Weight 84(L) x 184(W) x 133(D)mm / Approx. 900g (including batteries)
　 Accessories 7196A(Test leads with remote control switch), 7244A(Test lead with alligater clip), 8017(Extension prod), 8072(CAT II standard prod), 8212-USB(USB adaptor with "KEW Report (Software)"), 9155(Shoulder strap), 9156(Carrying case), LR6x6, Instruction manual
　 Optional 7243(L-shaped probe), 7245A(Precision measurement cord set), 8016(Hook type prod)
