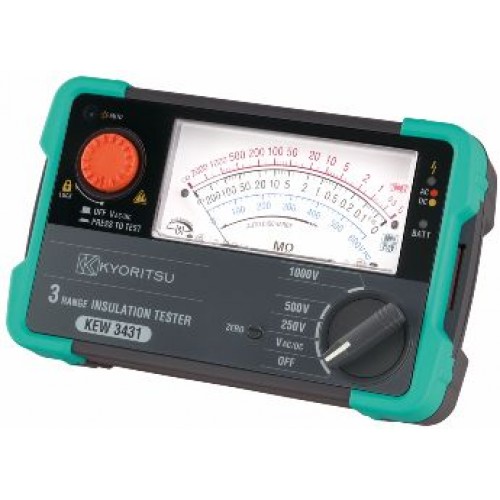

• Extremely compact and lightweight design.
• Automatic sensor turns the illuminated scale and LED spot light ON/OFF, useful in dimly lit location.
• Standard accessories include test probe with remote control switch and protective carry case.
• Live circuit warning with buzzer and flashing LED.
Insulation resistance
Test voltage
250V
500V
1000V
Max. effective scale value
200MΩ
2000MΩ
Mid-scale value
5MΩ
50MΩ
First effective measuring ranges
0.1MΩ - 100MΩ
1MΩ - 1000MΩ
Accuracy
±5% of indicated value
Second effective measuring ranges
Measuring ranges other than above, 0 and ∞
Accuracy
±10% of indicated value
LED insulation state indicator
0.25MΩ
0.5MΩ
1MΩ
indicating result by red / green color
Voltage measurement
Voltage range
AC 600V [45 - 65Hz]/DC 600V
Accuracy
±5% of full scale value
Applicable Standards
IEC 61010-1, 2-030 CAT Ⅲ 600V, IEC 61557-1, -2
IEC 61010-031, IEC 61326(EMC), EN 50581(RoHS)
Power source
LR6/R6(AA)(1.5V) × 4
Dimensions / Weight
97(L) × 156(W) × 46(D)mm / 430g approx.
Included Accessories
7260(Test lead with remote control switch),
7261(Test lead with alligator clip), 9173(Carrying case),
